ADSS
室外光缆系列-全介质自承式光缆
Outdoor optical cable series

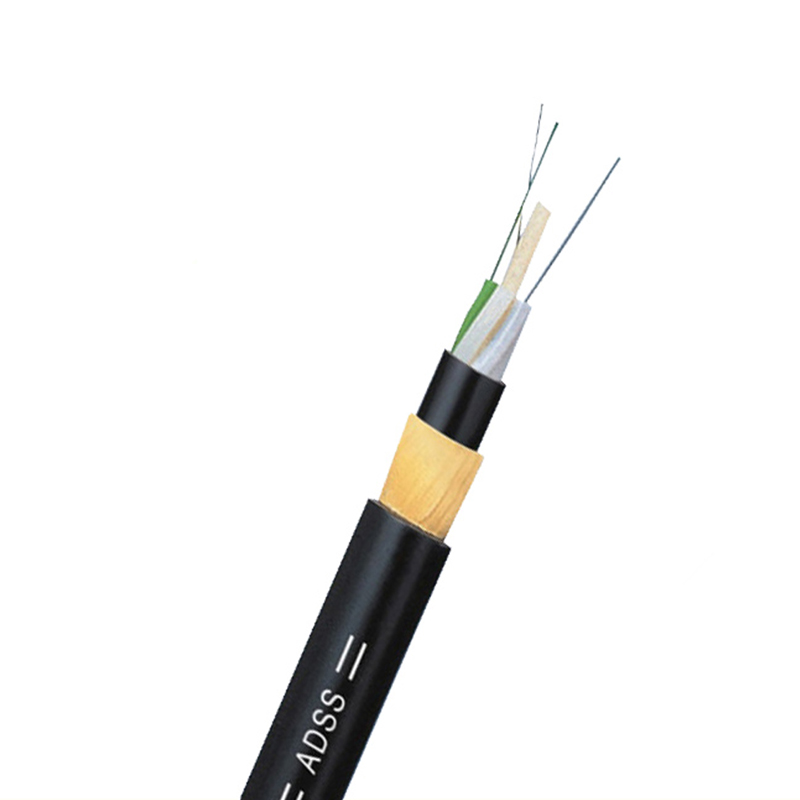

本公司生产的ADSS光缆采用松套层绞式结构，光纤套入由高模量聚酯材料制成的松套管中，套管内填充防水化合物。松套管(和填充绳)围绕非金属中心加强芯(FRP)绞合成紧凑的缆芯，缆芯内的缝隙充以阻水油膏。缆芯外挤制聚乙烯(PE）内护套，然后双向绞绕两层起加强作用的芳纶纱，最后挤制聚乙烯(PE)外套或耐电蚀(AT)外套。
The company's ADSS cable is made of loose fiber, and the fiber is sheathed in the loose tube made of high modulus polyester material. Loose sleeve and fillers) around the metal center to strengthen the core (FRP) twisted to form a cable core compact, the cable core within the gap filling with water stopping factice. Outside the cable core extruded polyethylene (PE) inside the sheath, and then two-way twisted around the two layer from the strengthening effect of aramid yarn, the final extruded polyethylene (PE) jacket or corrosion resistant (AT) coat.
可不断电架设。采用AT护套，耐电蚀性能优越。重量轻、缆径小，减少了冰凌、风力影响。和对塔架、支撑物的负荷。跨距大，最大跨距超过1000米。精确控制的芳纶铠装工艺大大提高了光缆的抗拉能力。精确控制的光纤余长和光缆绞合节距保证了光缆具有优异的抗拉性能和温度特性。预期寿命大于30年。
Constant electrical erection.The AT jacket is used, and the corrosion resistance is superior. Light weight, small cable diameter, reducing the influence of wind and ice.And on the tower and support load.Large span, the largest span more than 1000 meters.Aramid fiber armoured process precise control can greatly improve the tensile capacity of cable.Precise control of fiber excess length and cable stranding pitch guarantee.Optical cable has excellent tensile properties and temperature characteristics.Life expectancy is greater than 30 years.
推荐长度:2000米;可按客户要求提供其他长度。
Recommended length: 2000 m; other length can be provided according to customer's request.
|
参考
|
参考重量
|
每日平
|
最大允
|
断裂
|
抗拉
|
弹性
|
运行、储运、
|
热膨胀
|
适合档距（米）
|
|
|
(kg/km)
|
(对应气象条件)
|
|
|
均工作
|
许工作
|
元件
|
模量
|
系数
|
|
|
外径
|
|
|
强度
|
运输\温度
|
|
|
|
|
|
PE
|
AT
|
张力
|
张力
|
截面积
|
(kN/
|
(×10
|
|
|
|
|
|
(mm)
|
(kN)
|
范围(℃)
|
A
|
B
|
C
|
D
|
|
(kN)
|
(kN)
|
(mm2)
|
mm2)
|
-6/K)
|
|
外护
|
外护
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12.5
|
125
|
136
|
1.5
|
4
|
10
|
4.6
|
7.6
|
-40~+60
|
1.8
|
160
|
100
|
140
|
100
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13.0
|
132
|
142
|
2.25
|
6
|
15
|
7.6
|
8.3
|
-40~+60
|
1.5
|
230
|
150
|
200
|
150
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13.3
|
137
|
148
|
3.0
|
8
|
20
|
10.35
|
9.45
|
-40~+60
|
1.3
|
300
|
200
|
290
|
200
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13.6
|
145
|
156
|
3.6
|
10
|
24
|
13.8
|
10.8
|
-40~+60
|
1.2
|
370
|
250
|
350
|
250
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
13.8
|
147
|
159
|
4.5
|
12
|
30
|
14.3
|
11.8
|
-40~+60
|
1.0
|
420
|
280
|
400
|
280
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14.5
|
164
|
177
|
5.4
|
15
|
36
|
18.4
|
13.6
|
-40~+60
|
0.9
|
480
|
320
|
460
|
320
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14.9
|
171
|
185
|
6.75
|
18
|
45
|
22.0
|
16.4
|
-40~+60
|
0.6
|
570
|
380
|
550
|
380
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15.1
|
179
|
193
|
7.95
|
22
|
53
|
26.4
|
18.0
|
-40~+60
|
0.3
|
670
|
460
|
650
|
460
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15.5
|
190
|
204
|
9.0
|
26
|
60
|
32.2
|
19.1
|
-40~+60
|
0.1
|
750
|
530
|
750
|
510
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15.6
|
194
|
208
|
10.5
|
28
|
70
|
33.0
|
19.6
|
-40~+60
|
0.1
|
800
|
560
|
800
|
560
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16.3
|
211
|
226
|
12.75
|
34
|
85
|
40.0
|
20.1
|
-40~+60
|
0.1
|
880
|
650
|
880
|
650
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16.8
|
226
|
242
|
15.45
|
41
|
103
|
48.0
|
24.0
|
-40~+60
|
-0.4
|
1000
|
750
|
1000
|
760
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17.2
|
236
|
253
|
16.2
|
45
|
108
|
51.0
|
25.1
|
-40~+60
|
-0.5
|
1100
|
800
|
1100
|
830
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
17.9 249 266 18.0 50 120 58.8 26.1 -40~+60 -0.8 1180 880 1180 900
